TRANK MOUNTED CRUSHER
Trank Mounted Crusher

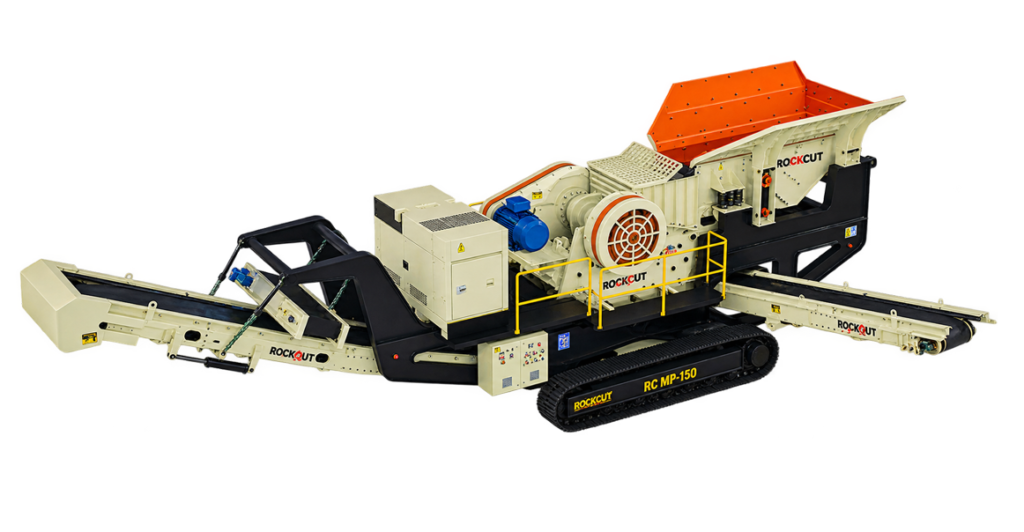

RC MP Series
Being the first stage in producing materials of different sizes & dimensions, the Jaw Crusher’s primary application is aggregate production for railway track-laying, mining and recycling activities. Rockcut’s Jaw crushers are compatible with different materials like rocks, ores and minerals of different sizes. They are signed for uninterrupted operations in the harshest of environments and provide maximum productivity at minimized costs.
Product Highlights
- Sturdy design, easy to install and maintain
- Accommodates high volume feed intake
- Safe and convenient to operate
- Strong & durable Jaw Plates that can be swapped
- A steeper Nip angle quickens the material flow
TECHNICAL DATA
| MODEL | UNIT | RC MP-150 | RC MP-200 |
|---|---|---|---|
|
JAW CRUSHER Jaw Opening Size (W x L) |
mm(inch) |
900 x 600 (36 x 24) |
1050 x 80 (42 x 32) |
| CSS Range | mm(inch) |
75 to 180 (3.0 to 7.0) |
75 to 180 (3.0 to 7.0) |
| *Capacity | TPH | 120-180 | 170-250 |
| Feeding Hopper | m³ | 6 | 8 |
|
GRIZZLY FEEDER RCGF 3X9 Size |
mm(inch) |
900 x 3000 (35.4 x 118.1) |
1100 x 4000 (43.3 x 157.5) |
|
MAIN CONVEYOR Belt Width |
mm | 900 | 900 |
| Discharge Height | mm | 3000 | 3000 |
| Stock Pile Capacity | m³ | 60 | 60 |
|
SCALPING CONVEYOR Belt Width |
mm | 600 | 600 |
| Discharge Height | mm | 2300 | 2300 |
| Stock Pile Capacity | m³ | 20 | 20 |
|
UNDER CARRIAGE Shoe Width |
mm | 500 | 500 |
| Hydraulic Tank Capacity | ltrs | 400 | 400 |
|
POWER UNIT DIESEL GENERATOR |
KVA | 200 | 280 |
| Transport (L x W x H) | mm(inch) |
12800 x 3250 x 3900 (503.9 x 127.0 x 153.5) |
14100 x 3400 x 4200 (555.1 x 133.9 x 165.4) |
| Working (L x W x H) | mm(inch) |
13900 x 8204 x 4305 (547.4 x 323.0 x 169.5) |
15100 x 8220 x 4610 (594.5 x 323.6 x 181.5) |
| **Weight |
kg (Ton) |
46000 46 |
56000 56 |
