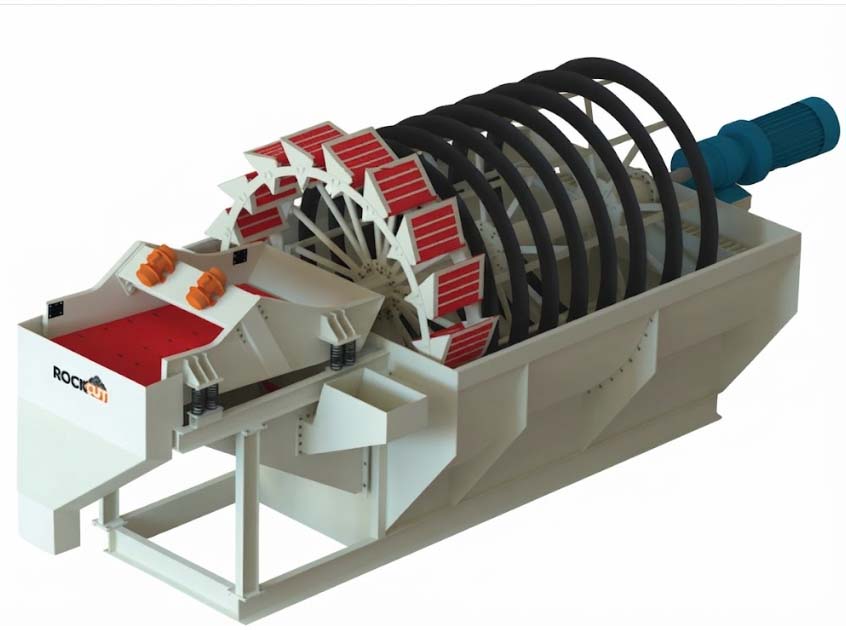

SAND WASHER

RockCut’s Sand Washer improves material quality and the versatility of sand making it suitable for multiple applications. Advanced technology integrated with the innovative bucket wheel design results in seamless and streamlined sand washing.

PRODUCT HIGHLIGHTS

Heavy-duty construction to accommodate large volumes of feeds
VFD controlled bucket wheel calibrations help adjust the level of finesse in the output, as per requirement
Speed reduction through Planetary gears increases torque making maintenance easy
Erosion resistant Spiral Wheels lined with Hardox Wear plates
Anti-corrosive and anti-rust protection coating for the water trough
Adjustable flumes to control the particle flow via an in-built Weir system

TECHNICAL DATA

DESCRIPTION	UNIT	RCBC 100	RCBC 150	RCBC 200
Wheel Dia	MM	2350	2500	3000
No. of Bucket	TPH	16	18	24
*Capacity	TPH	40-60	70-120	120-160
“B.C. Drive Power”	KW	4.2×2	7.5	11
“B.C. Drive Power”	(HP)	5.7×2	10	15
“Dewatering Screen Size(LxW)”	MM	1800×1200	2400×1500	3000×2400
“Dewatering Screen Size(LxW)”	(Inch)	32-6	36-7	4-72
“Dewatering Screen Drive Power”	KW	3.6×2	2.25×2	3.6×2
“Dewatering Screen Drive Power”	(HP)	25×2	3×2	4.8×2

*Details may vary based on application
**Weight inclusive of motor & accessories
Note: All the above technical details may vary at any time during engineering process & design development
