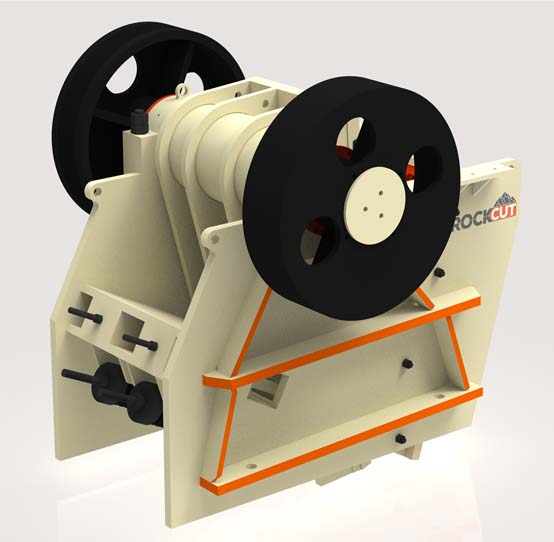

Jaw Crusher

Product Description

Being the first stage in producing materials of different sizes & dimensions, the Jaw Crusher’s primary application is aggregate production for railway track-laying, mining and recycling activities.RockCut’s Jaw crushers are compatible with different materials like rocks, ores and minerals of different sizes.They are designed for uninterrupted operations in the harshest of environments and provide maximum productivity at minimized costs.

Product Highlights

  • Sturdy design, easy to install and maintain
  • Accommodates high volume feed intake
  • Safe and convenient to operate
  • Strong & durable Jaw Plates that can be swapped
  • A Steeper Nip angle quickens the material flow

Technical Data

Machine Size MM 900x600 1100x800 1200x900
(Inch) 36'x24' 44'x32' 48'x36'
Feed Size MM 550 750 850
(Inch) -22 -30 -34
*Capacity TPH 100-150 170-250 300-400
CSS Range MM 80-150 90-175 100-180
(Inch) 32-6 36-7 4-72
Speed RPM 250 250 275
Drive Power KW 90 110 160
(HP) 125 150 215
*Details may vary based on application
**Weight inclusive of motor & accessories
Note: All the above technical details may vary at any time during engineering process & design development
