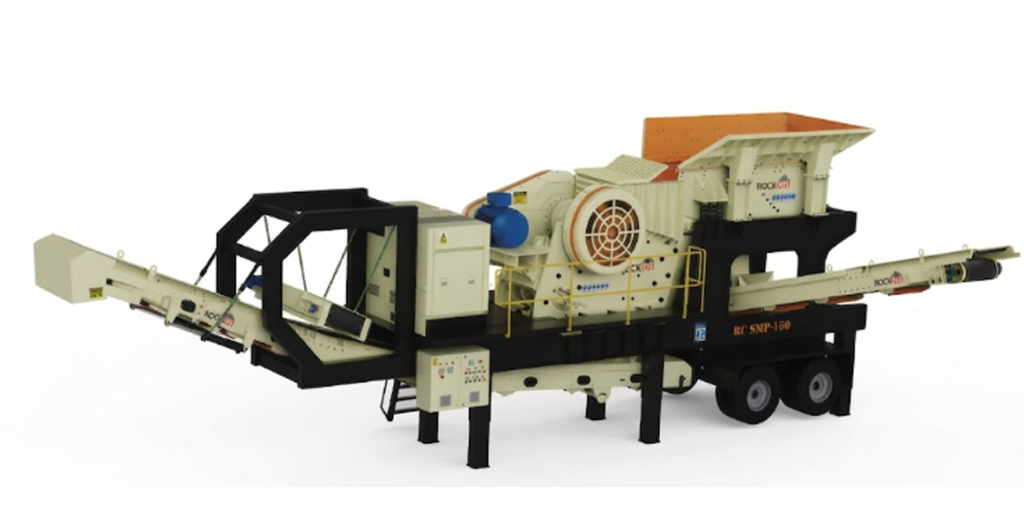

Mobile Primary Crusher
Mobile Primary Crusher
RCJ SeriesRC SMP Series
Being the first stage in producing materials of diff sizes & dimensions, the Jaw Crusher's primary application is aggregate production for railway track-laying, mining and recycling activities. RockCut's Jaw crushers are compatible with different materials like rocks, ores and minerals of different sizes. They are signed for uninterrupted operations in the harshest of environments and provide maximum productivity at minimized costs.
Product Highlights
- Sturdy design, easy to install and maintain
- Accommodates high volume feed intake
- Safe and convenient to operate
- Strong & durable Jaw Plates that can be swapped
- A Steeper Nip angle quickens the material flow
TECHNICAL DATA
| DESCRIPTION | UNIT | RCSMP150 | RCSMP200 | RCSMP300 |
|---|---|---|---|---|
| Machine Size | MM (Inch) | 900 x 600 36″ x 24″ | 1100 x 800 44″ x 32″ | 1200 x 900 48″ x 36″ |
| Feed Size | MM (Inch) | 550 -22 | 750 -30 | 850 -34 |
| *Capacity | TPH | 100 – 150 | 170 – 250 | 300 – 400 |
| CSS Range | MM (Inch) | 80 – 150 3.2 – 6 | 90 – 175 3.6 – 7 | 100 – 180 4 – 7.2 |
| Speed | RPM | 275 | 250 | 250 |
| Drive Power | KW (HP) | 90 120 | 110 150 | 160 215 |
