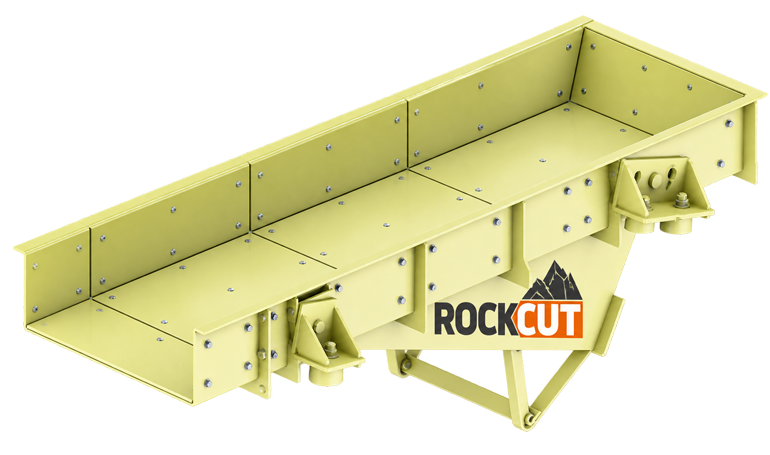

PAN FEEDER

Our Pan Feeder series are modelled to directly feed a primary crusher or an intermediate scalper. This function can be customized for consistent performance and also to increase efficiency.

PRODUCT HIGLIGHTS

Aggregates production in mining and recycling operations
Versatile design – standard operations and the scope to tailor-make as per the need
Reliable and consistently high output
Ease of use and improved durability
Compatible with other brand plants too

TECHNICAL DATA

DESCRIPTION	UNIT	RCC 150	RCC 200	RCC 250
Size(LxW)	MM	2100×600	2500×800	2800×1000
Size(LxW)	Feet	07’x02′	8.3’x2.6′	9.3’x3.3′
Capacity	TPH	100-150	200-250	300-350
Drive Power	KW	1.1×2	1.3×2	1.6×2
Drive Power	(HP)	15×2	1.75×2	2.15×2

*Details may vary based on application
**Weight inclusive of motor & accessories
Note: All the above technical details may vary at any time during engineering process & design development

RockCut Infrastructures Private Limited is a company formed by a grouping the extensive experience and business acumen of veterans from the Crushing, Screening and Heavy-equipment industry.(With the ISO 9001:2015 certification)
