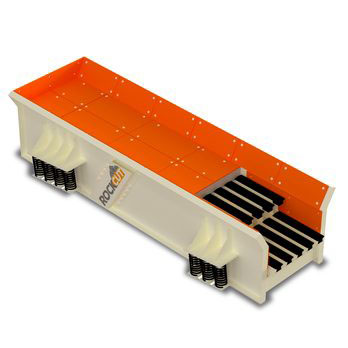

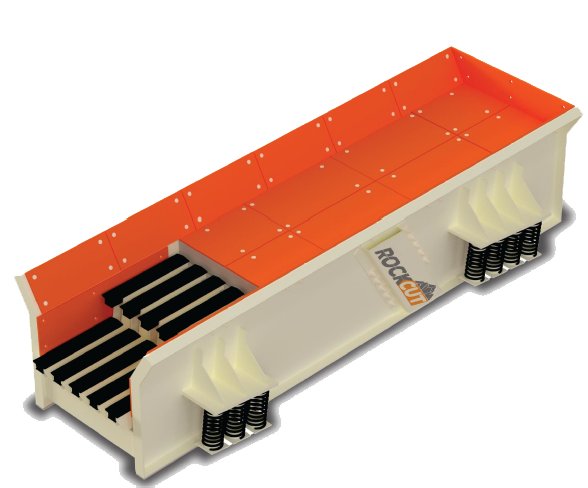

GRIZZLY FEEDER

RockCut’s Grizzly feeders are Primary feeders designed to facilitate very high capacities of materials, that can be stationary or mobilize. The feeder’s inclined angle and tapering enable prevents pegging of material and increases separation quality.

PRODUCT HIGHLIGHTS

Widely used for materials like rock, gravel, slag, recycled industrial materials and more
Customizable configurations to fit the application requirements
Replaceable cartridge component enforced with hardened steel
Impact spots lined with high-abrasion resistant insulation
High-performance is driven by a robust electric motor

TECHNICAL DATA

DESCRIPTION	UNIT	RCGF 150	RCGF 200	RCGF 200
Mantle Dia	MM	4000×900	4500×1200	4800×1500
Mantle Dia	Feet	13.3’x03′	15’x04′	16’x04′
*Capacity	TPH	150	200-250	300-400
Max Feed Size	MM	900	900	900
Drive Power	KW	3.7×2	4.2×2	4.75×2
Drive Power	(HP)	5×2	5.7×2	6.4×2

*Details may vary based on application
**Weight inclusive of motor & accessories
Note: All the above technical details may vary at any time during engineering process & design development
