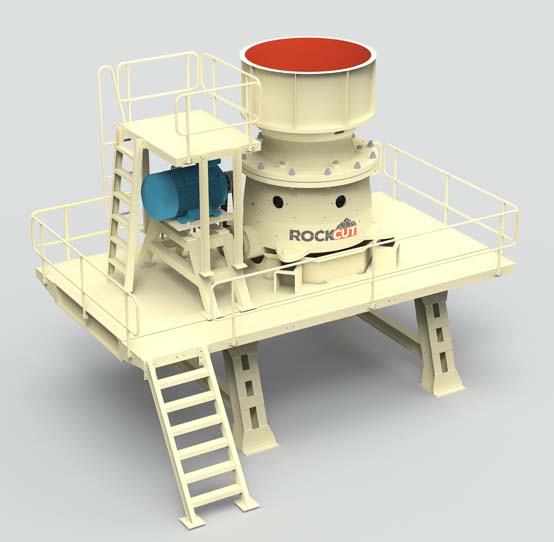

CONE CRUSHER

RockCut’s Cone crushers with their futuristic design and higher capacity feeds are used for Secondary & Tertiary applications.They’ve gained popularity due to their reduction efficiency ratio in quarrying and mining applications and ability to produce multiple shapes & sizes as per the activity requirement.

PRODUCT HIGHLIGHTS

Dependable and convenient operations
Optimized performance & energy consumption
High-density chambers for crushing coarse feed
Higher output capacity and high-yield end products
Significantly lesser downtime and increased operator comfort

TECHICAL DATA

DESCRIPTION	UNIT	RCC 150	RCC 200	RCC 250
Mantle Dia	MM	950	1150	1250
Mantle Dia	(Inch)	38	46	50
Feed Size	MM	150	180	180
Feed Size	(Inch)	-6	-7.2	-7.2
*Capacity	TPH	90-150	130-200	170-250
CSS Range	MM	15-35	18-40	18-40
Drive Power	KW	110	160	200
Drive Power	(HP)	150	215	270

*Details may vary based on application **Weight inclusive of motor & accessories Note: All the above technical details may vary at any time during engineering process & design development
