HYDRO CYCLONE

HYDRO CYCLONE

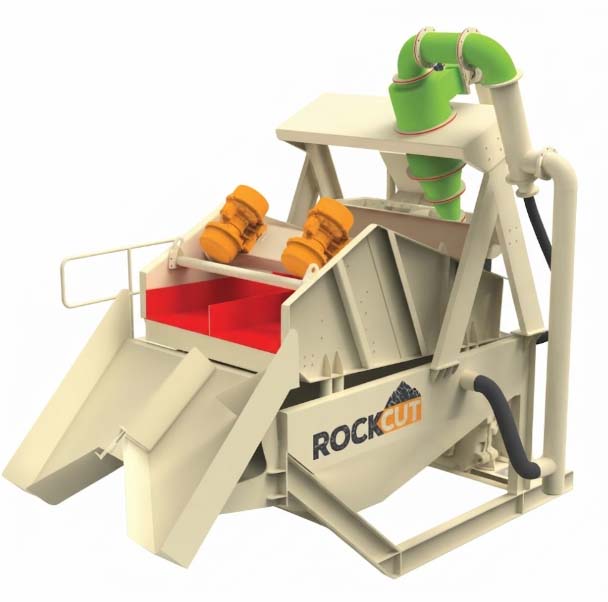

Our advanced “Hydro Cyclone” washing equipment is made to extract maximum efficiency in segregating final washed sand from silt, clay and other minute unwanted particles. This high-level accuracy equipment assists in the dewatering process of specialized sand, ores, minerals and other materials.

PRODUCT HIGHLIGHTS

  • High-washing capabilities
  • In-built Cyclone classifiers for increased efficiency in the dewatering process
  • Dedicated discharge channels for the elimination of sludge, silt and slime
  • A proper water separation system ensures reduced wastage of sand and primary products during wash
  • Rubber or Polyurethane (PU) lined feed box to reduce the raw material impact
  • Designed to use water and power conservatively

TECHNICAL DATA

DESCRIPTION UNIT RCHC 50 RCHC 100 RCHC 150 RCHC 200
*Capacity TPH 30-50 60-80 90-120 130-170
Hydro Cyclone Size MM 325 400 500 600
(Inch) 13 16 20 24
Slurry Pump Size(SuctionxDelivery) MM 75×50 100×75 150×100 200X150
(Inch) 3×2 4×3 6×4 8×6
Slurry Pump Capacity Cu.M/Hr 100 125 200 250
Slurry pump Drive Power KW 11 15 30 37
(HP) 15 20 40 50
Dewatering Screen Size(LxW) MM 1800×1200 2400×1500 3000×2400 4000×2800
Dewatering Screen Drive Power KW 1.85×2 2.25×2 3.6×2 4.2×2
(HP) 2.5×2 3×2 4.8×2 5.6×2
*Details may vary based on application
**Weight inclusive of motor & accessories
Note: All the above technical details may vary at any time during engineering process & design development
